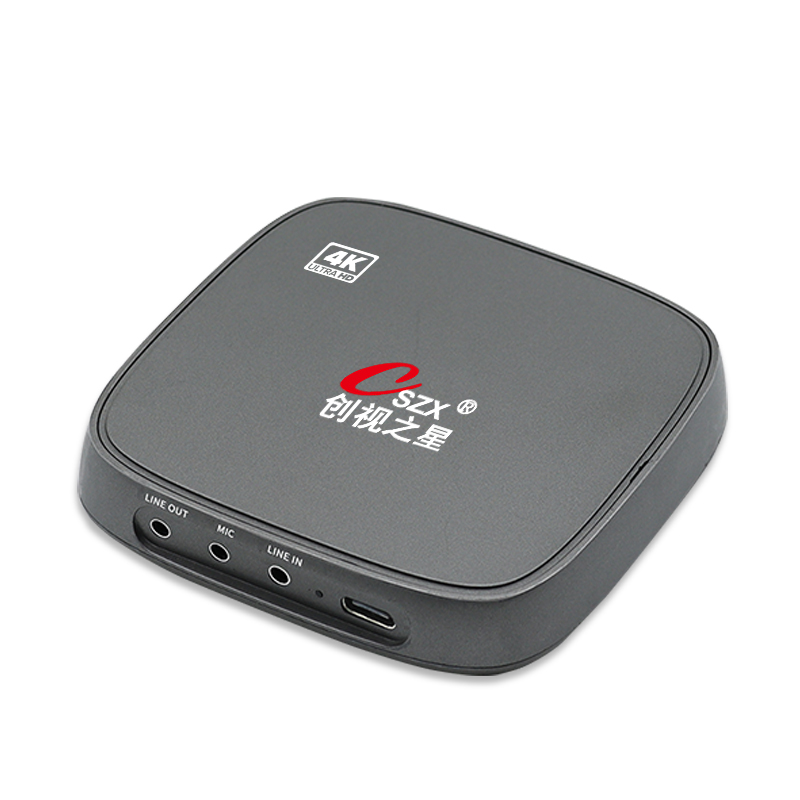

产品型号:CSZX-651S
Video: 720x400@ 70Hz,640x480@60Hz,640x480@75Hz ,800x600@60Hz
800x600@75Hz, 1024x768@60Hz, 1024x768@75Hz, 1280x 1024@75Hz,
1920x 1080@60Hz, 1280x 1024@60Hz, 1280x800@60Hz,
1360x850@60Hz,1440x900@60Hz, 1680x 1050@60Hz,2560x 1080p60, 1280x720p60
1280x720p50,720x576p50 16:9, 720x576p50 4:3,720x480p60 16:9
720x480p60 4:3, 640x480p60, 1440x576i50 4:3, 1440x480i60 4:3
1440x480i60 16:9,3840x2 160p30,3840x2160p25,
3840x2160p24,3840x2 160p60,3840x2 160p50,2560x 1440@60HZ,
2560x 1440@ 144Hz,1920x 1080p60, 1920x 1080p50, 1920x 1080p30, 1920x 1080p25
1920x 1080p24, 1920x 1080i60, 1920x 1080i50,
1920x 1080@ 120Hz,1920x 1080@ 144Hz, 1920x 1080@240Hz
Audio:LPCM, 2 channels: 32KHz 44. 1KHz 48KHzUSB3.0下支持分辨率格式如下:
RGB32 :1920x 1080p30 (max) (default), 1280x720p60,720x576p50,720x480p60
640x580p60, 1360x768p60, 1280x 1024p60, 1024x768p60,800x600p60
YUY2 : 2560x 1440p50 (max), 1920x 1080p60 (default), 1280x720p60
720x576p50720x480p60640x580p60 1360x 768p601280x 1024p601024x768p60, 800x600p60
NV 12: 3840X2160p30 (max) (default),2560X 1440p60, 1920x 1080p120,
1920x 1080p60, 1280x720p60,720x576p50,720x480p60,640x580p60
1360x 768p60, 1280x 1024p60, 1024x768p60,800x600p60
P010: 1920x 1080p60 (HDR) 输入信号需支持HDR
1280x720p60(HDR)输入信号需支持HDR
Max:为上限支持输出
default: 为默认输出
使用第三方软件时,当输入源分辨率低于4K/30Hz时,USB3.0端上限为1080P/60Hz
如USB3.0端需要4K/30Hz,输入分辨率必须输入4K/30Hz或者4K/60Hz
